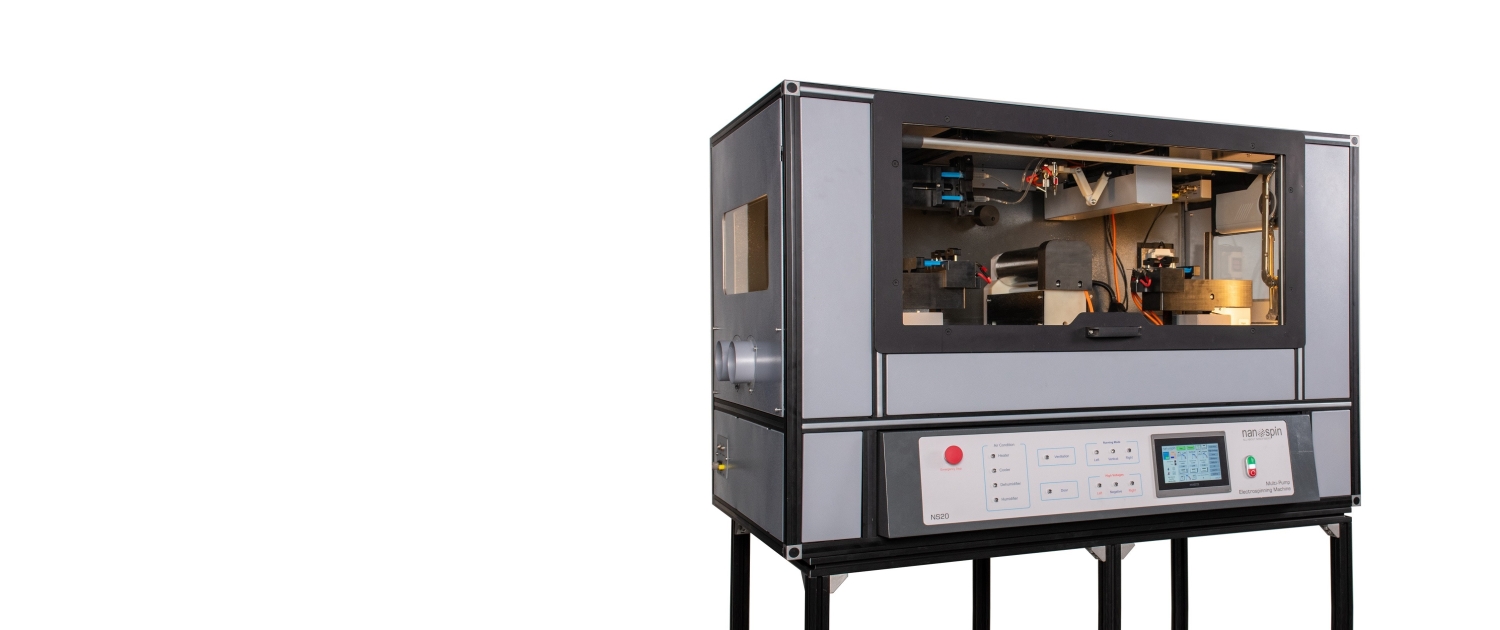

• NanoSpin 20 (Multi-Pump Lab-Scale Electrospinning)

    Triple-pump electrospinning system for advanced multi-material nanofiber fabrication with precise control and exceptional versatility

    Learn moreGet a quote

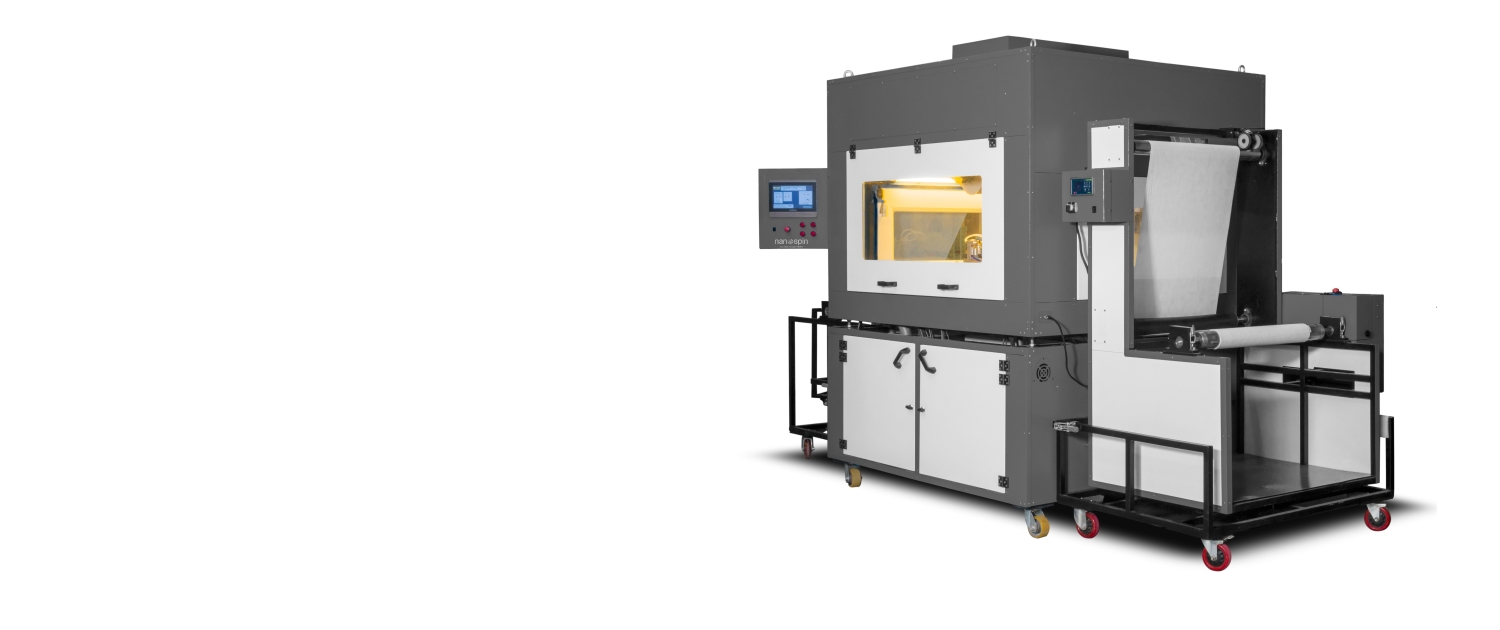

  • Pilot NanoSpin (Pilot Electrospinning Machine)

    Pilot machine is a polymeric/ceramic nanofibers producer machine in pilot (semi-industrial) scale for various applications.

    Learn moreGet a quote

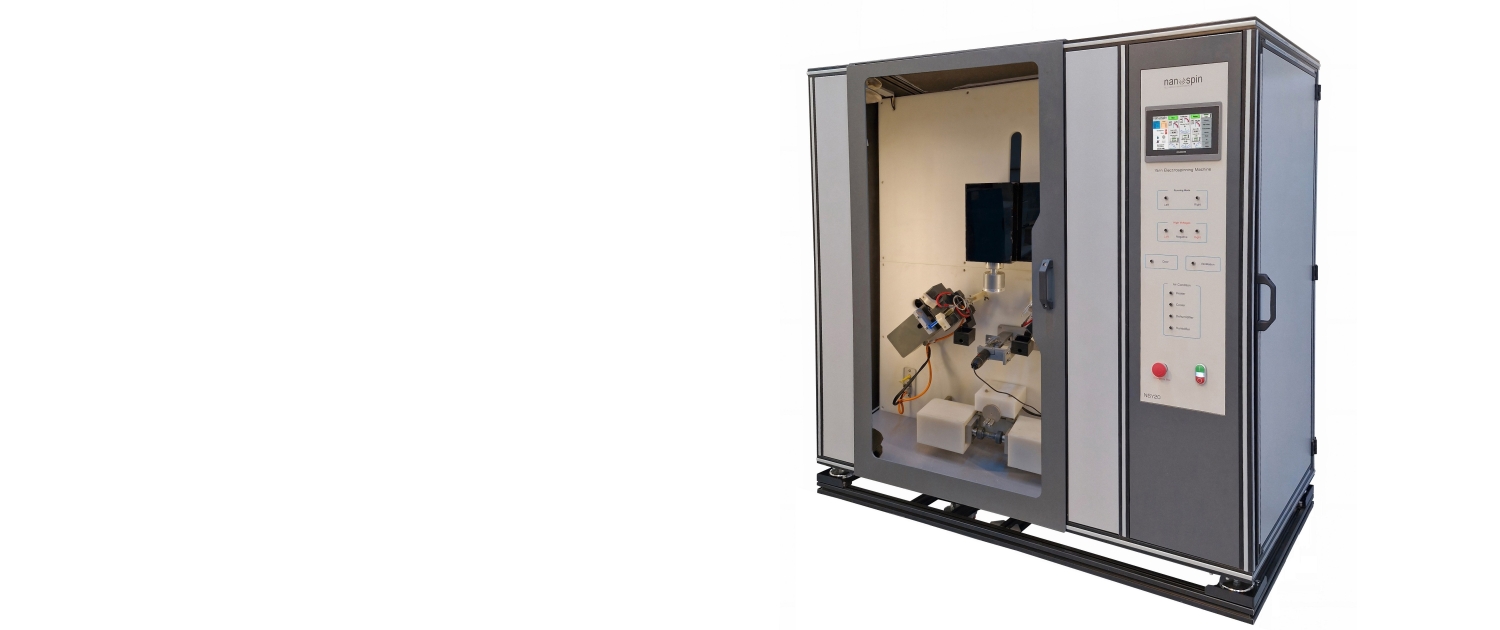

  • Yarn Electrospinning Machine

    Advanced electrospinning system for continuous nanofiber yarn production with precision, flexibility, and biomedical versatility.

    Learn moreGet a quote

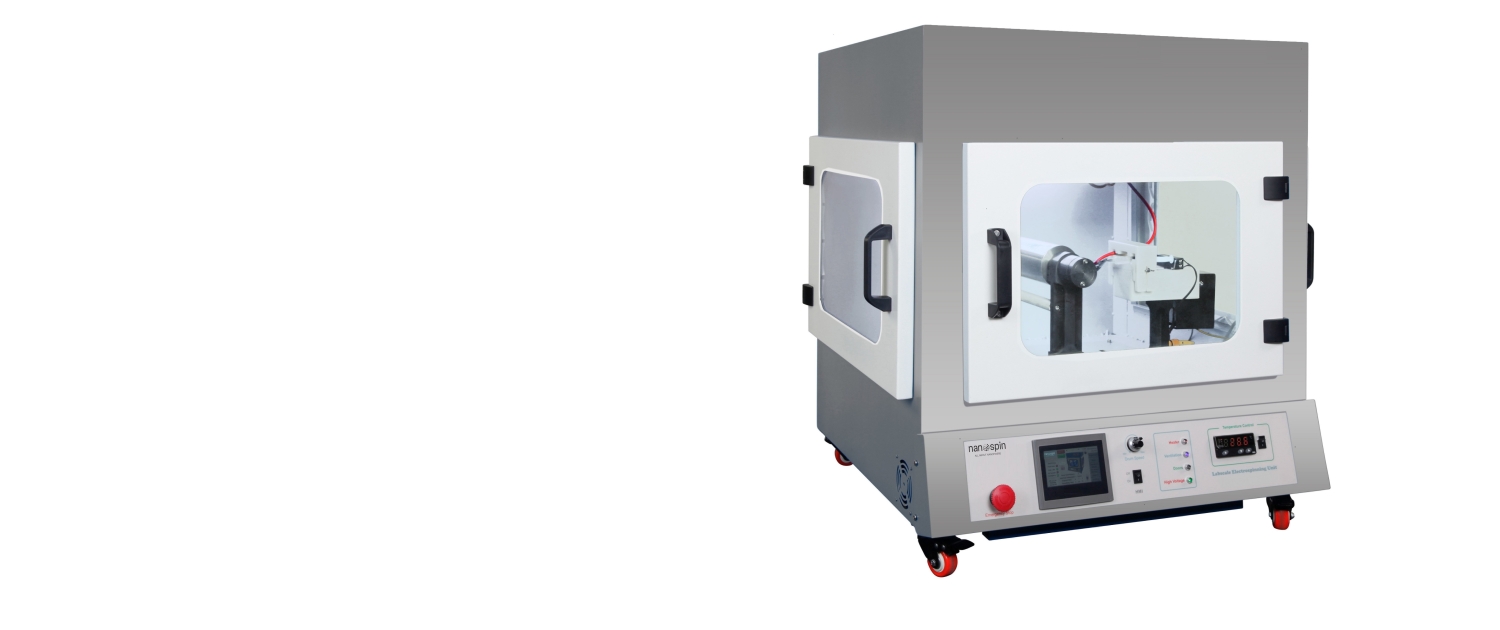

  • NanoSpin 10 (Single-Pump Lab-Scale Electrospinning)

    Precision single-pump electrospinning system for reliable nanofiber fabrication, research excellence, and small-scale production applications.

    LEARN MOREGET A QUOTE
1234

About NanoSpin

NanoSpin is a leading designer and manufacturer of high-quality, custom-built electrospinning machines and accessories. We specialize in delivering innovative, reliable, and user-friendly solutions for scientists and engineers working in nanofibers, nanotechnology, biomaterials, and tissue engineering.

Our product range includes Lab-Scale, Pilot, and Industrial electrospinning systems—along with advanced accessories such as High Voltage Power Supplies, Syringe Pumps, Collector Drums, and AC Control Systems. Each system is built with precision, full customizability, and long-term reliability in mind.

To meet growing global demand, we have expanded production to serve the European market and beyond. At NanoSpin, we are committed to advancing nanofiber technology by empowering researchers with tools that deliver unmatched accuracy and consistency.

Products

Yarn Electrospinning Machine

Pilot Electrospinning Machine (Pilot NanoSpin)

NanoSpin 20 (Multi-Pump Lab-Scale Electrospinning)

NanoSpin 10 (Single-Pump Lab-Scale Electrospinning)

NanoSpinBox (CompactPro Electrospinning System)

NanoSpin Modular Electrospinning Set-Up

AC Control System

Syringe Pump (SP)

High Voltage Power Supply

Electrospinning Collector

We specialize in manufacturing advanced electrospinning machines for both laboratory research and industrial production. We offer superior quality at highly competitive prices.

contact us

Comparison of NanoSpin Electrospinning Systems

Feature / Model NanoSpin Pilot NanoSpin Yarn NanoSpin 20
(Multi-Pump)		 NanoSpin 10
(Single-Pump)		 NanoSpinBox
(CompactPro)		 NanoSpin Set-Up
(Modular)
Modularity Semi-Industrial Yarn / Suture Production Research / Advanced R&D Research / Advanced R&D Compact R&D Modular Desktop R&D
Spinning Type Blown / Needle System Needle / Yarn Forming Needle / Coaxial (Optional) Needle / Coaxial (Optional) Needle System Needle System
Spinning Direction Bottom to Top Adjustable (0–90°) Horizontal Horizontal Horizontal Horizontal
Number of Syringe Pumps 5 (Each Unit) 2 2 + 1 (Optional) 1 1 1
Number of Syringes 5 (Each Unit) 4 4 + 2 (Optional) 2 2 Up to 2
Injection Rate 50 µl/h – 500 ml/h 50 µl/h – 500 ml/h 50 µl/h – 500 ml/h 50 µl/h – 500 ml/h 50 µl/h – 500 ml/h 50 µl/h – 500 ml/h
Number of HV Supplies 1 Positive + 1 Negative 2 Positive + 1 Negative 2 Positive + 1 Negative 1 Positive + 1 Negative 1 Positive (+ Optional Negative) 1 Positive (+ Optional Negative)
Voltage Range ±35 kV ±35 kV ±35 kV ±35 kV +35 kV (−35 Optional) +35 kV (−35 Optional)
Voltage Monitoring Digital (0.1 kV) Digital (0.1 kV) Digital (0.1 kV) Digital (0.1 kV) Digital (0.1 kV) Digital (0.1 kV)
Collector Type Cylinder / Plate Funnel / Pipe Cylinder / Plate Cylinder / Plate Cylinder Cylinder
Optional Collectors N/A Cylinder (Dual-Pump Mode) Mandrel, Wire, Radial, Needle, Wheel & Disk Mandrel, Wire, Radial, Needle, Wheel & Disk Mandrel, Wire, Radial, Needle, Wheel & Disk Mandrel, Wire, Radial, Needle, Wheel & Disk
Rewinding / Winding System Roll (60 cm, 2–200 m/h) Yarn (0.1–100 cm/min) N/A N/A N/A N/A
Collector Speed 5–50 rpm 20–500 rpm 300–3000 rpm 300–3000 rpm 300–3000 rpm 0–3000 rpm
Nanofiber Area 50 × 60 cm 25 × 30 cm (Dual-Pump Mode) 30 × 30 cm 30 × 30 cm 30 × 25 cm 30 × 25 cm
Spinning Distance 10–30 cm 5–25 cm 5–20 cm 5–20 cm 5–20 cm User Adjustable
Distance Control 1 Automated 2 Automated 2 Automated + 1 Manual (Optional) 1 Automated 1 Manual Manual
Scanning System 1 System 1 System 2 Systems (1 Optional) 1 System 1 System N/A
Control Interface 10″ Touch HMI 7″ Touch HMI 7″ Touch HMI 7″ Touch HMI 4.3″ Touch HMI 4.3″ Touch HMI + LCD Controller
Climate Control Optional Optional Optional Optional N/A N/A
Camera Monitoring Optional Real-Time Monitoring Optional Optional N/A N/A
Laser Monitoring Yes N/A Yes Yes N/A N/A
Door Safety Yes Yes Yes Yes Optional N/A
Emergency Button Yes Yes Yes Yes Yes N/A
Electrospinning Chamber Yes Yes Yes Yes Optional N/A
Optional Accessories Second Unit, Temperature & Humidity Control, Custom Collectors Dual-Pump Conversion, Temperature & Humidity Control Vertical Injection, Coaxial Nozzle, Temperature & Humidity Control, Custom Collectors Coaxial Nozzle, Temperature & Humidity Control, Custom Collectors Negative HV, Chamber, Custom Collectors Negative HV Supply, Custom Collectors
Dimensions (L × W × H) 376 × 193 × 239 cm 155 × 75 × 155 cm 152 × 95 × 100 cm 100 × 90 × 90 cm 90 × 70 × 20 cm Compact Desktop Design
Weight ~1000 kg 270 kg 225 kg 140 kg 60 kg Portable
Applications Pilot Production, Material Development Yarn & Suture R&D, Biomedical Threads Multi-Solution R&D, Core-Shell Fibers, Nanofiber Mats Educational R&D, Core-Shell Fibers, Nanofiber Mats Educational Use, Nanofiber Mats Educational Use, Nanofiber Mats
Learn More Learn More Learn More Learn More Learn More Learn More

Request your quotation in just one click—we’ll prepare and send it to you quickly

Get a Quote

Applications

Respritory Face Mask

Nanofibers show an impressive ability to attract particulate matter (PM) pollutants, achieving high removal efficiency with minimal pressure drop and excellent optical transparency.

Respiratory Face Mask Media

Due to their high surface area-to-volume ratio, nanofibers have demonstrated immense potential in respiratory face mask applications.

Filter Media

Electrospun nanofibers are ideal for filtration, thanks to their fine pore size and large specific surface area.

Battery Separator

Nanofiber-based nonwoven membranes possess small pores and high porosity, making them perfect separators for rechargeable lithium-ion batteries.

Beauty Face Mask

Nanofibers’ extensive contact surface area allows efficient delivery of cosmetic agents to deeper layers of the skin.

Wound Dressing

By controlling pore size and fiber diameter precisely, nanofiber production enables mats that are ideal for wound dressing applications.
