Brief Description
🔄 NanoSpin offers a comprehensive range of rotary and specialty electrospinning collectors to meet diverse electrospinning needs—from flat membranes to tubular scaffolds and aligned nanofibers. Each collector is engineered with precision, integrated control, and compatibility with NanoSpin lab-scale systems.
🧩 Features of All Collectors:
- Adjustable rotation speeds
- Digital speed display (LCD)
- Compatibility with positive or negative high-voltage sources (Except Wet Collector)
- Standalone or integrated use

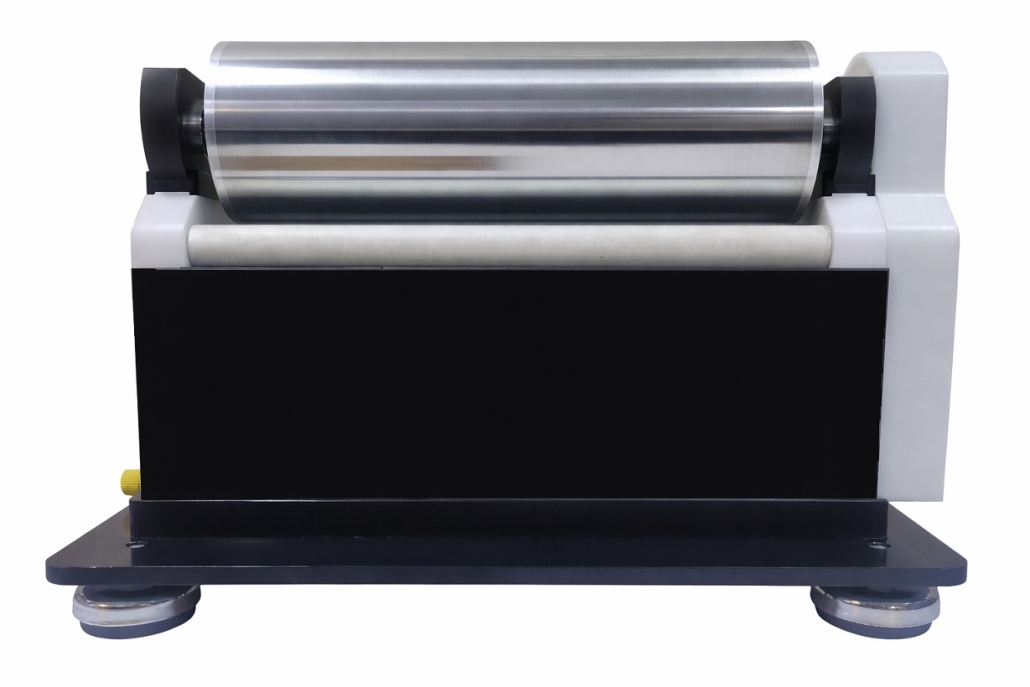

🌀 Cylinder Collector
Application: Uniform Membrane Production
The negative cylinder collector minimizes fiber scattering and ensures consistent nanofiber deposition. Ideal for conjugate and multi-jet spinning. It offers:
- Speed: up to 3000 RPM
- Length: 30 cm
- Diameter: 8 or 10 cm

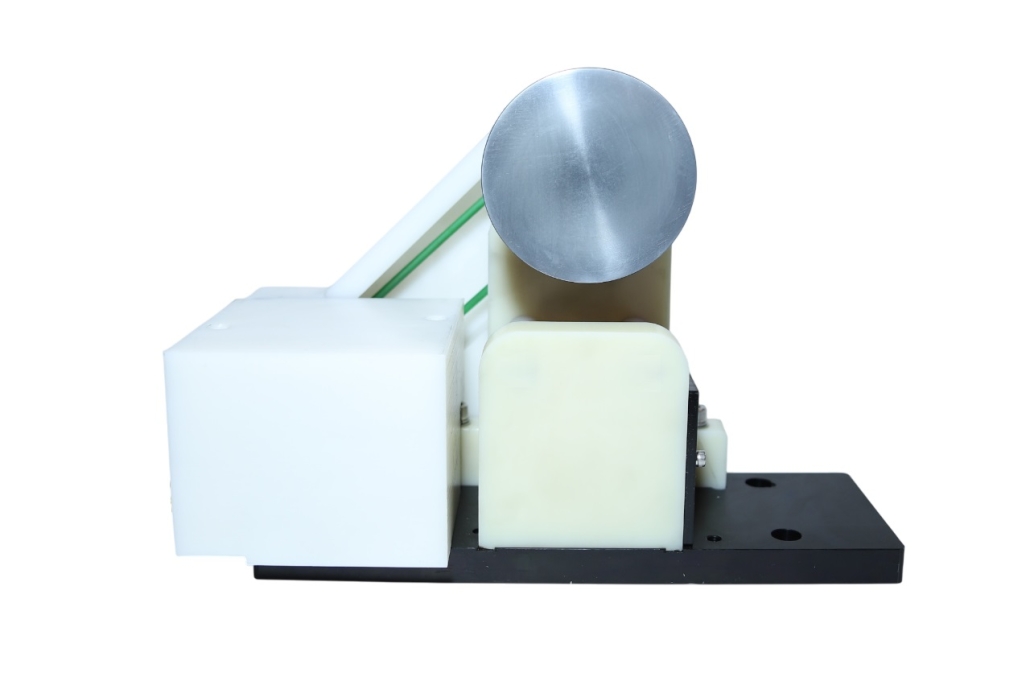

🔄 Disk Collector
Application: Arranged Fiber Sheets
Designed for the production of Arranged nanofibers sheet, the Disk Collector enables studies on linear speed effects and fiber formation. It supports:
- Speed: up to 500 RPM
- Diameters: 3, 5, 10 cm

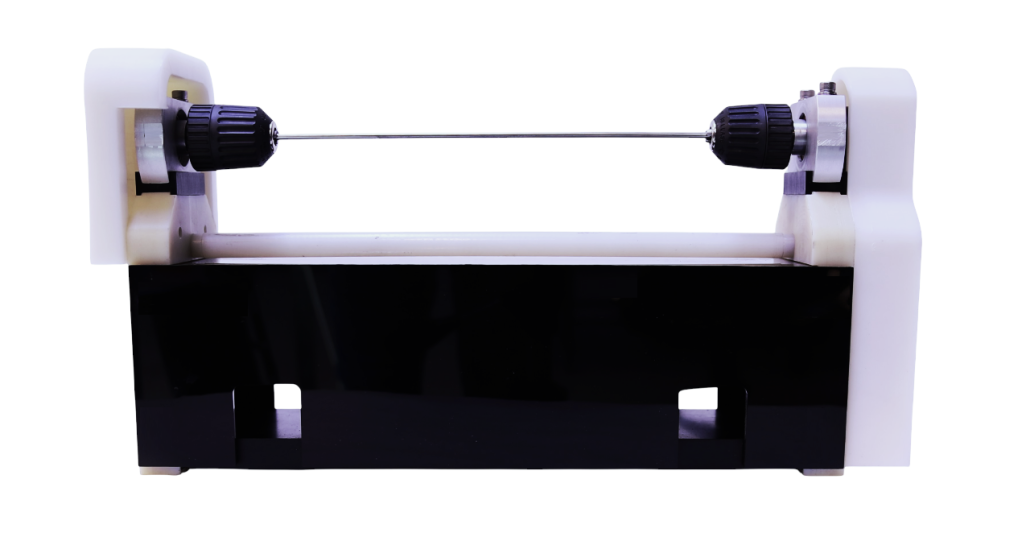

🧵 Mandrel Collector
Application: Tubular Scaffold Fabrication
This collector enables fabrication of tubular nanofibrous structures. It includes a programmable stage, controller, and six interchangeable stainless-steel mandrels
- Diameters: 1, 2, 3, 4, 6, 8 mm
- Speed: up to 3000 RPM
- Length: 25 cm

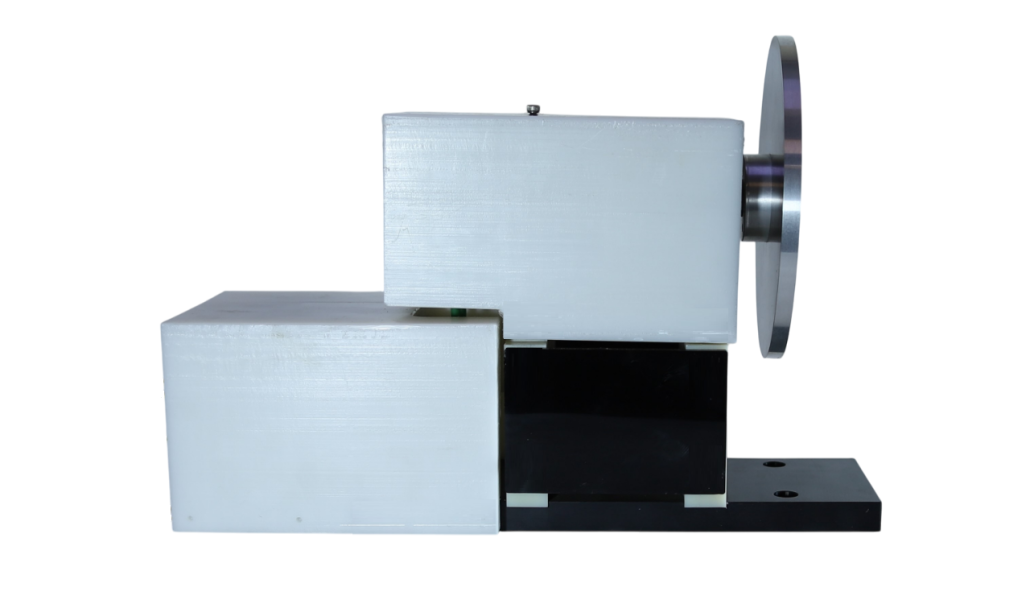

🔘 Wheel Collector
Up to 3000 rpm
Rotation speed
10-turn potentiometer
Speed control
16-30 cm
Length of collector
1 to 20 cm
Collector diameter

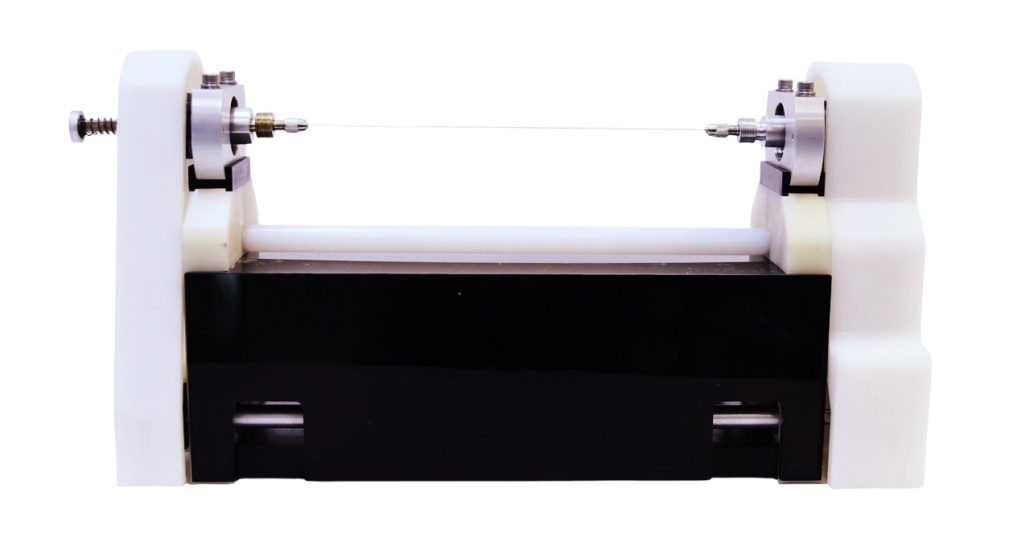

🔗 Single Wire Collector

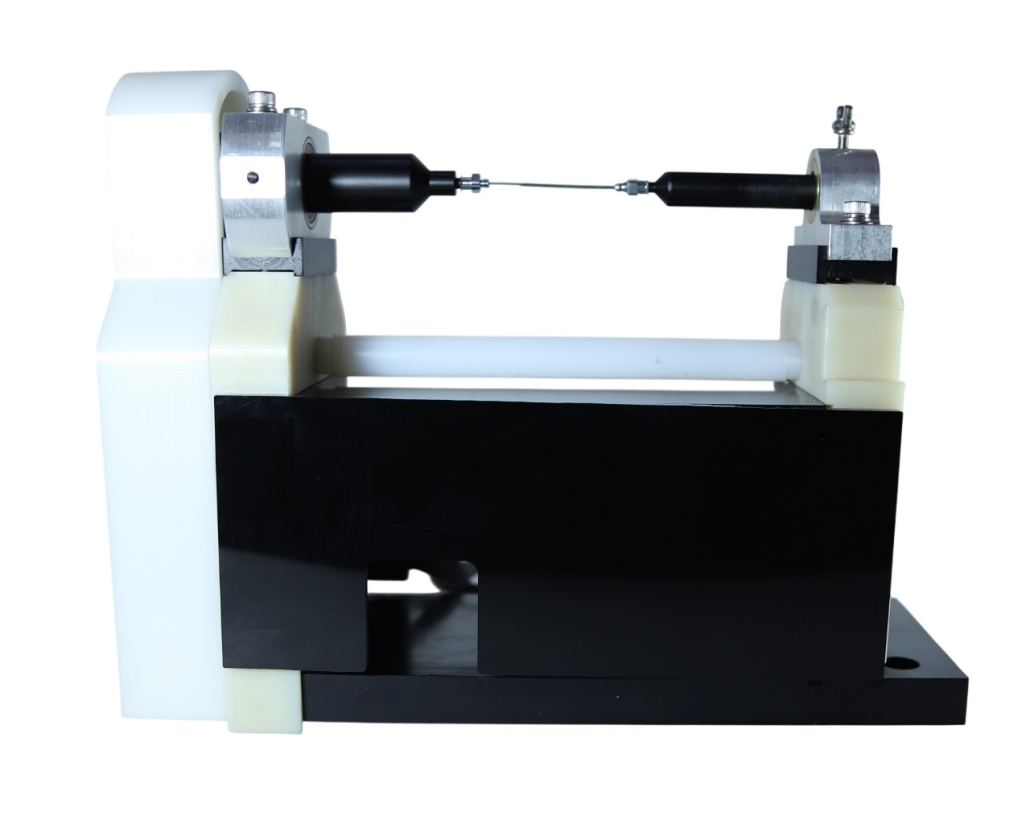

💉 Needle Collector

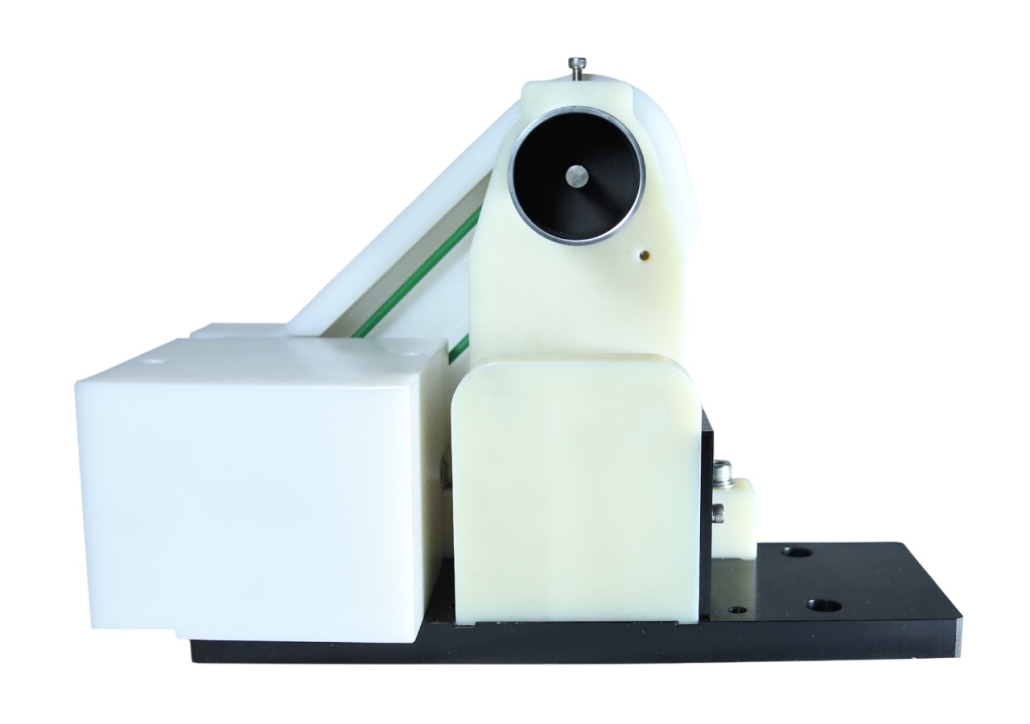

🧶 Radial Collector

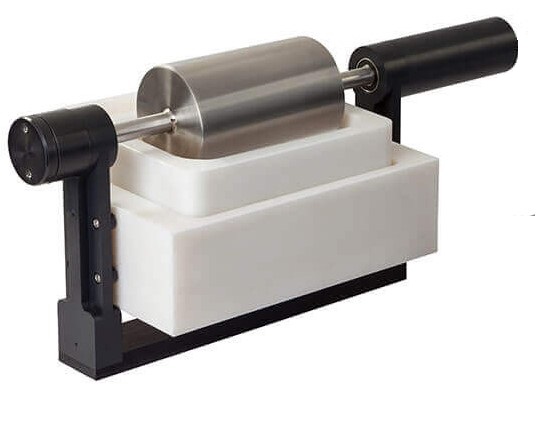

💧 Wet Collector

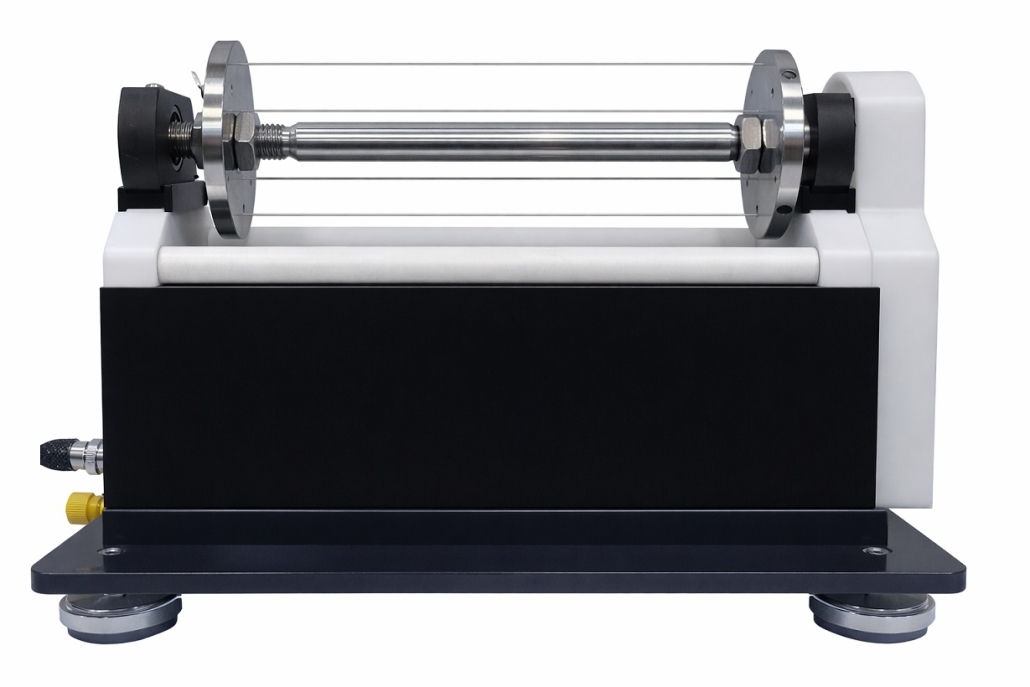

🧷 Multi Wire Collector
🎛️ Collector Controller
The NanoSpin Collector Controller provides accurate and stable rotation control for all compatible collector modules. Designed for high-precision nanofiber fabrication, it features user-friendly manual input with real-time speed feedback.
✅ Key Features:
- Speed range: 0–3000 RPM
- 10-turn panel-mounted potentiometer for fine-tuned speed adjustment
- Smooth, stable motor control for consistent fiber alignment
- 2×16-character LCD display for real-time speed monitoring
- Universal compatibility with NanoSpin rotary collectors
- Compact desktop unit for seamless lab integration
