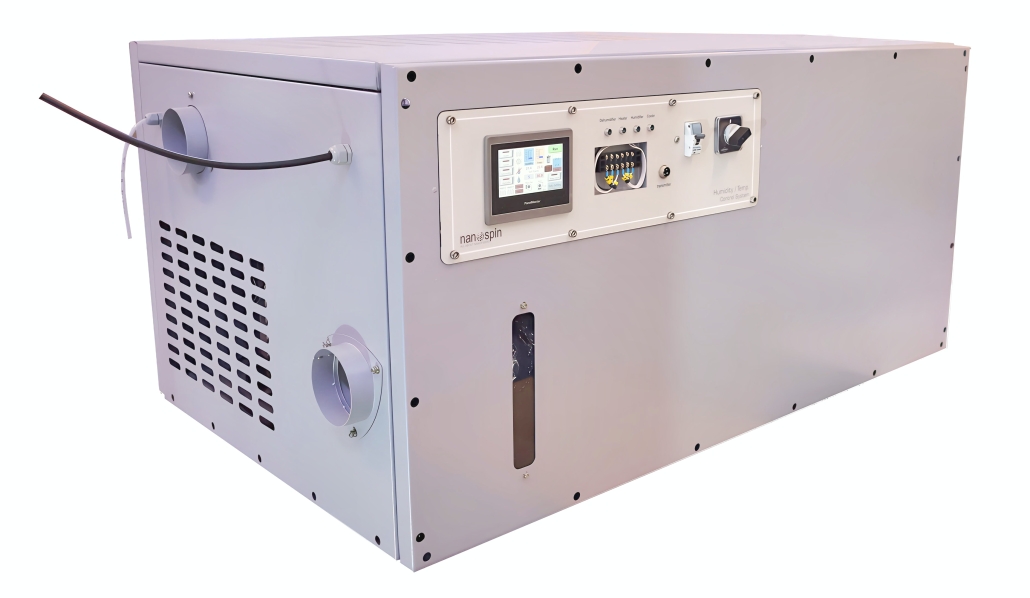

AC Control System

Brief Description

Ambient conditions play a crucial role in the electrospinning process, directly affecting fiber morphology and reproducibility. Unstable temperature and humidity can lead to variations in fiber diameter, bead formation, and weak adhesion properties. To prevent these issues, the NanoSpin AC System ensures precise temperature and humidity control, creating optimal environmental conditions for high-quality nanofiber production. With its advanced features, researchers can maintain a stable and repeatable electrospinning environment, reducing inconsistencies in their experiments. Moreover, this system enhances process reliability, making it ideal for both academic research and industrial applications. By optimizing environmental factors, users can significantly improve fiber uniformity and achieve better reproducibility in large-scale nanofiber production.

Key Features

✅ Precise Control

  • Temperature range: 18 to 45°C (±1°C)
  • Relative Humidity: 10 to 80% (±5%)

✅ Fully Integrated System

  • Equipped with a humidifier, dehumidifier, cooler, and heater, offering complete climate control.

✅ Optimized for Electrospinning

  • Specifically designed to maintain 18 to 45°C with an Relative humidity of 10 to 80%, ensuring ideal conditions for nanofiber fabrication.

✅ Versatile & Scalable

  • Compatible with NanoSpin’s Lab-Scale Electrospinning Machine.
  • Easily connects to any chamber requiring controlled environmental conditions, providing flexibility for various research and industrial needs.

NanoSpin machine with AC system

18 to 45°C

Temperature range

10 to 80%

Relative Humidity

4 – 7 g/m³

Dehumidifier Capacity

5 – 8 g/m³

Humidifying capacity

With the NanoSpin AC System, you can ensure precision, stability, and reproducibility in your electrospinning research. Whether working with polymeric, ceramic, or composite nanofibers, this system offers consistent environmental conditions, enabling superior fiber formation.

Specifications

Input power 100-240 V AC/50-60 Hz
Dimensions (L×W×H) 77×120×60 cm
Weight About 140 kg
Chassis Metallic body
HMI 4.3” touch screen
Type programmable logic controller (PLC)
Control detail Integrated parameters control
Room requirements Tempreture 20 to 25°C & Relative  humidity between 30 to 40%
Max Air Flow 200 m3/h
Duct Insulated duct 100 mm inner diameter
Cooler Mode Reduces temperature by 18°C
Heater Mode Increases temperature by 45°C
Humidifier Mode Reduces humidity by 10%
Dehumidifier Mode Increases humidity by 80%
