NanoSpin Box
π Brief Description
The NanoSpinBox (CompactPro Electrospinning System) is a compact, cost-effective solution for laboratory-scale nanofiber fabrication. π§ͺ This user-friendly system combines essential electrospinning components with integrated safety features and customizable options, supporting a wide range of R&D projects. Despite its small footprint, the NSB-10 delivers precision control and stable performance, making it an ideal choice for universities, startups, and research labs.
π― Applications
π©Ή Biomedical Research β Wound dressings, tissue scaffolds.
π Drug Delivery Systems β Controlled-release nanofibers.
π¬οΈ Filtration Media β Air and liquid filtration membranes.
π Energy Storage β Battery separators and functional nanomaterials.
π‘ Nanofiber Sensors β Sensing and detection applications.
π Textiles & Composites β Advanced fabrics and reinforcement materials.

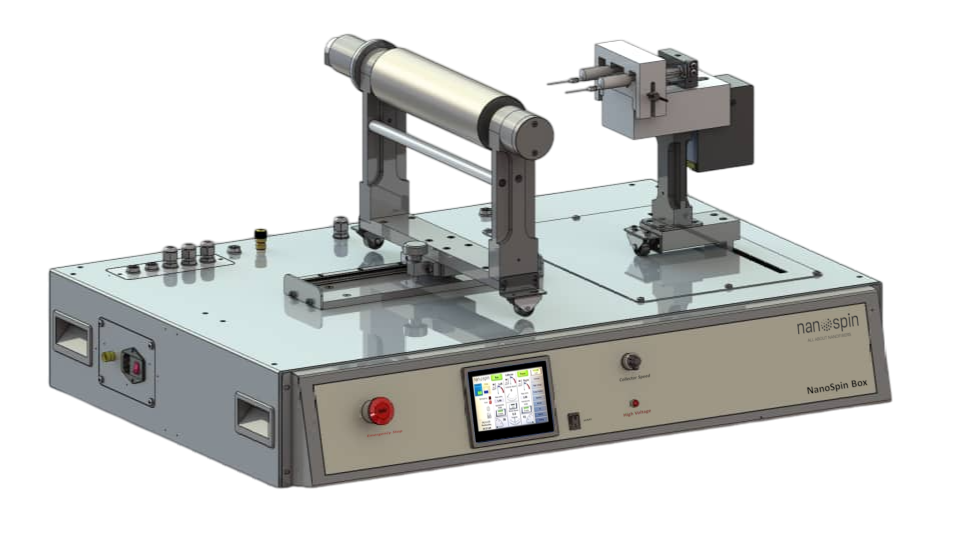

NanoSpin Box With Chamber
10 Β΅l/h to 500 ml/h
Syringe pump injection rate
1 or 2
Number of syringes
35 kV
Output voltage
5-20 cm
Spinning distance
β Main Features
πΊ Touchscreen Interface β 4.3β HMI panel for intuitive system control.
β‘ High Voltage Power Supply β Integrated 0β35 kV positive HV with Β±0.1 kV precision.
βοΈ Adjustable Scanning System β Uniform fiber deposition at 0β3000 mm/min.
π Modular Collector β Cylindrical drum (Γ10 cm Γ 30 cm) with 300β3000 rpm adjustable speed.
π Compact Design β Space-saving layout suitable for benchtop use.
π User-Friendly Operation β Easy syringe pump setup supporting up to 2 syringes.
π‘οΈ Safety Features β Emergency stop, door interlock (with optional chamber), and HV protections.

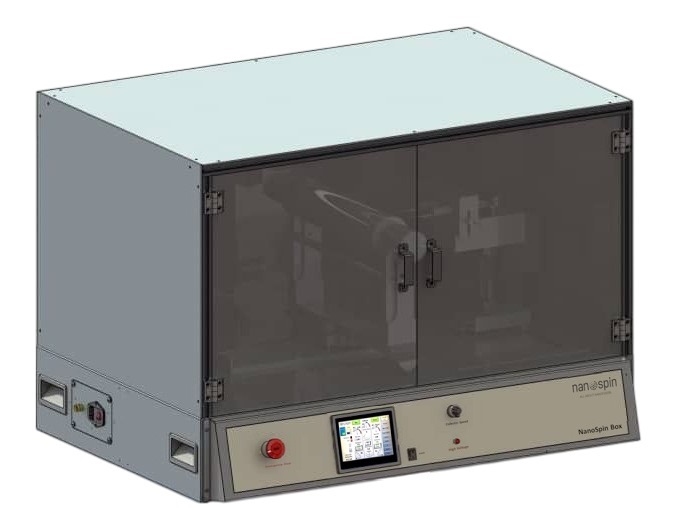

π Optional Enclosed Chamber β Transparent, ventilated chamber with LED lighting and door interlock.
π Upgradeable Options β Optional Negative HV and Enclosed Chamber for enhanced control and safety.
Specification
General
Chassis & Control System
- Control Part: Metallic body
- Enclosed Chamber:Β Transparent, ventilated chamber with LED lighting and door interlock.
- Power input: 100-240 V AC / 50-60 Hz
- Control system: 4.3β touch-screen HMI (Programmable Logic Controller
Dimensions & Weight
- Machine dimensions – Control Part (LΓWΓH): 90 cm Γ 70 cm Γ 20 cm
- Machine dimensions – With Chamber (LΓWΓH): 90 cm Γ 70 cm Γ 80 cm
- Weight: 50 kg (Package: ~140 kg)
Safety features
- Automatic voltage cut-off in case of door opening, grounding issues, or process disruption
Control
Control Features
- Start and end position of the nozzle(s)
- Injection rate control for syringe pump(s)
- Electrospinning distance settings
- Process timing (start, stop, and duration)
- ON/OFF timer for exhaust fan
- Rotational speed control of collector
- Alarm notification for solution depletion
Spinneret
Spinneret Configuration
- Horizontal setup (no need for tubing)
- Scanning rate: 0β30 mm/s
- Scanning range: 0β30 cm
Syringe PumpΒ
- Injection rate: 10 Β΅l/h to 500 ml/h
- Usable syringe size: 1β25 mm (inner diameter)
- Optional: Co-axial nozzle with tubing
High voltage power supply
- Model: PS-V35P (Positive)
- Max output voltage: 35 kV
- Power: 30 Watt
- Voltage monitoring: Digital (accuracy: 0.1 kV)
- Configuration:
- One positive power supply connected to the syringe pump
Collector
Specifications
- Negative cylinder
- Optional collectors: plate collector
- Material: Stainless steel
- Rotational speed: 300β3000 rpm (cylindrical drum)
- Spinning distance: 5β20 cm
- Nanofiber coverage area: 30 cm Γ 25 cm (Cylindrical drum)
