High Voltage Power Supply (PS)

PS-V Series

Brief Description

NanoSpin’s high voltage power supply (HVPS) units combine compactness and lightness, rendering them exceptionally fitting for exigent laboratory applications and beyond. These encompass capacitor testing, free electron lasers, ion implantation, physical vapor deposition, capillary electrophoresis, electrospinning, ion-beam assisted deposition, ion sources, and more. Notable for their cost-effectiveness, advanced safety components, and remarkable adaptability in research operations, NanoSpin’s high voltage units stand out. Tailored for versatile laboratory settings, these units serve as invaluable general-purpose instruments.

HVPSs series

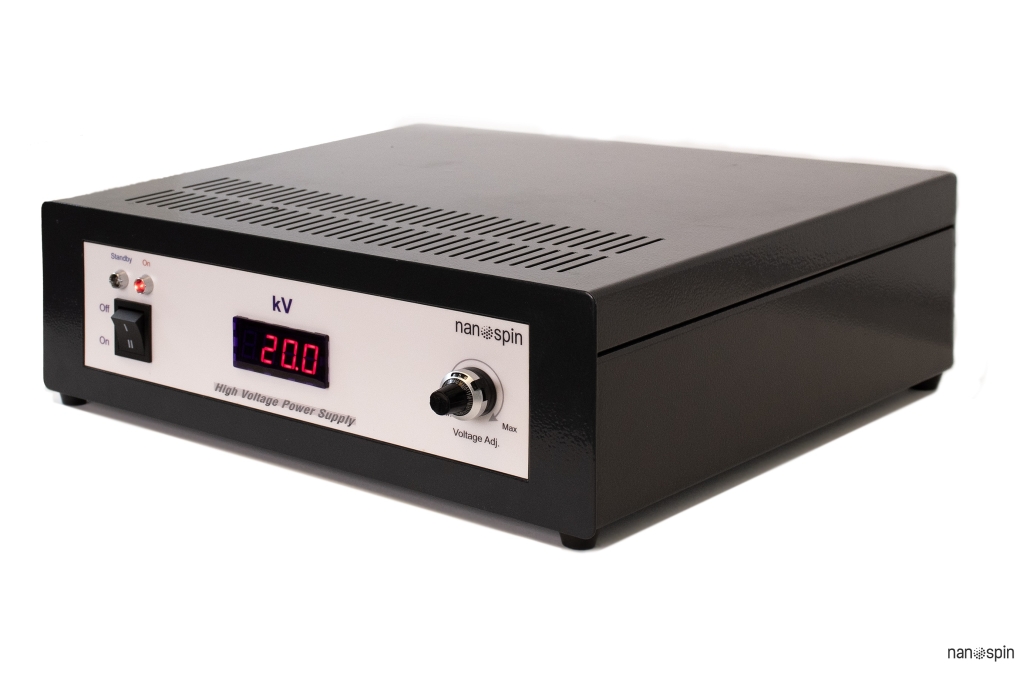

PS-V Series only have output voltage indicator (Accuracy = 0.1 kV).

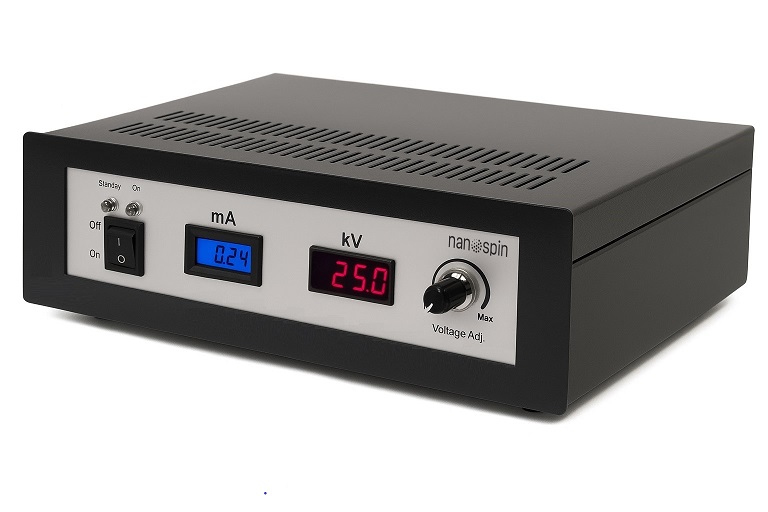

PS-C series have output voltage indicator (Accuracy = 0.1 kV) and output current display (Accuracy = 1 micro-amp).

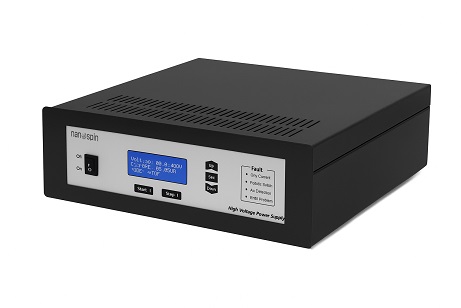

PS-D Series have a standard USB connector for digital remote control via windows Operating System with 10 bit resolution. 10 Bit configuration means that 50kV (max) would be divided into 1024 segments. In this case, 50,000/1024 which is approximately 50V per bit.

PS-D Series

35 and 50 KV

Output

35 Watt

Power

Positive/Negative

Polarity

0.1 kV

Accuracy

PS-C Series

NanoSpin PS nomenclature

PS-AXXB
A: PS Series (D, C & V)
XX: Maximum output voltage (35 & 50)
B: Polarity Positive(P) & Negative (N)
Example:
PS-V35P → High Voltage 35kV, Positive, PS-V series
PS-D35N → High Voltage 35kV, Negative, PS-D series

Typical Applications

• Electrospinning
• Capillary electrophoresis
• Capacitor testing
• CRT display testing
• Free-electron lasers
• Photomultipliers
• Ion sources
• Biasing
• Dielectric Testing
• Piezoelectric Drivers
• Electrostatic Chucks
• Sealing Applications
• Inkjet Printers
• Photo Detectors

Features

High Frequency Switch-Mode Circuit Design for HVPS: HVPS design topologies leverage switch mode power conversion technology, operating at high frequencies. The “switcher” design has become the preferred choice for numerous industrial and medical applications due to its exceptional combination of high efficiency, compact size, lightweight nature, and enhanced safety for high voltage supplies.

Arc Sensing Circuitry (Optional): Our cutting-edge proprietary arc sensing circuitry is designed to effectively suppress arcing conditions that may occur frequently in high voltage applications. By incorporating this optional feature, we ensure the utmost safety and protection for both the power supply and the user, enhancing the overall reliability and performance of the system.

Software: The PS-D Series High Voltage Power Supply is bundled with comprehensive control software and essential accessories, ensuring seamless connectivity right out of the box. Upon installing the control software on a Windows-compatible computer, the PS-D unit becomes “plug and play,” simplifying the setup process. The USB interface is readily accessible through a standard communications port, facilitated by a Windows USB driver. This streamlined integration allows for effortless control and monitoring of the PS-D Series High Voltage Power Supply, providing a hassle-free user experience.

Specification

Output

Continuous, stable adjustment, from 0 to the desirable voltage by panel-mounted 10-turn potentiometer (PS-C and PS-V series) or by a digital volume (PS-D Series).

Input

100-240 V AC, single-phase

Power

35 Watt

Weigh

5 kg (35 and 50 kV) and 7 kg (more than 50kV; Optional)

Dimension

PS-V and PS-C: 34×38×12 cm, PS-D: 34×43×12 cm

Working Temperature

-5 to +45 °C

Voltage Monitoring

Accuracy: 0.1 kV

Current Monitoring

(PS-C and PS-D series): Accuracy: 1 µA

Arc detector

In PS-D series

Polarity

Available either positive or negative

Warranty

1 year for manufacturing defects
