NanoSpin 10
π Brief Description

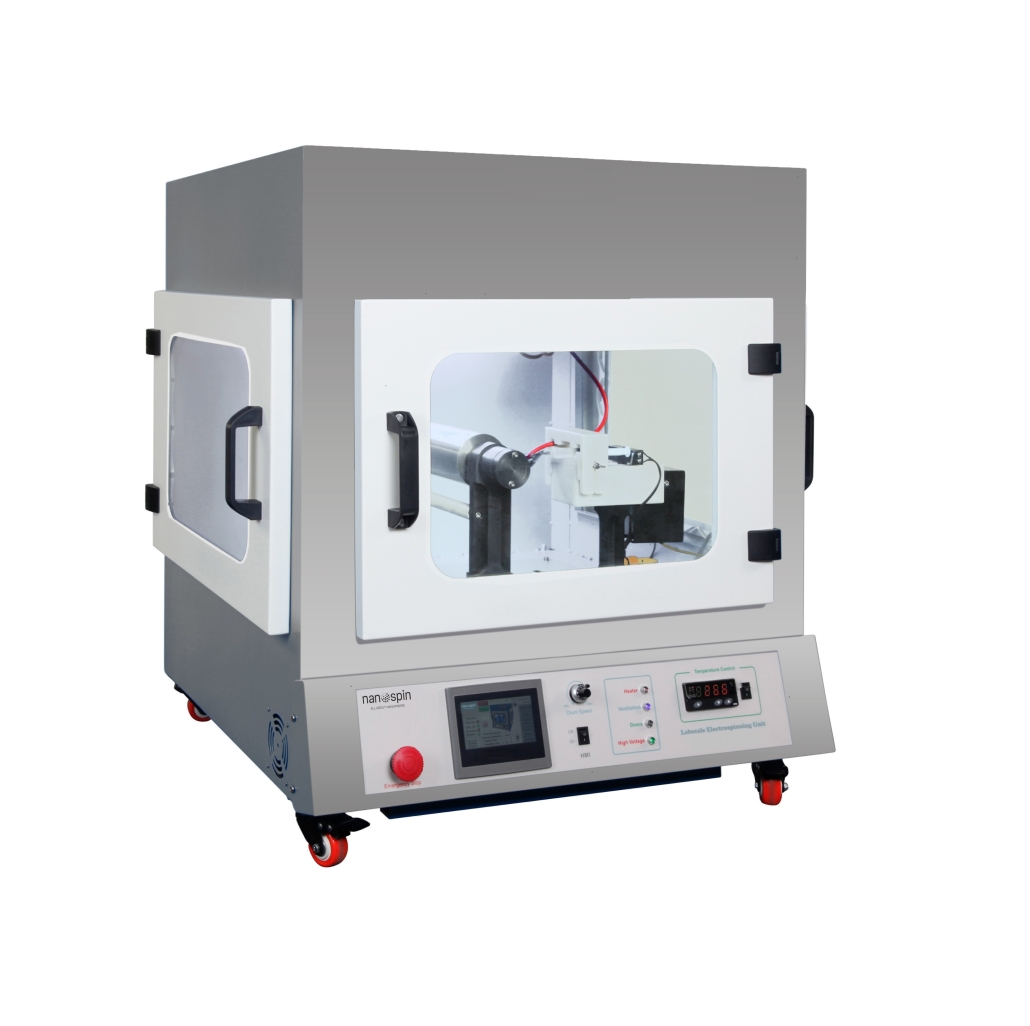

The NanoSpin 10 is a high-precision lab-scale electrospinning machine designed for producing polymeric, carbon, and ceramic nanofibers with diameters from 50 nm to a few microns. π¬ It is perfect for R&D and small-scale production, delivering stable performance and fine process control.

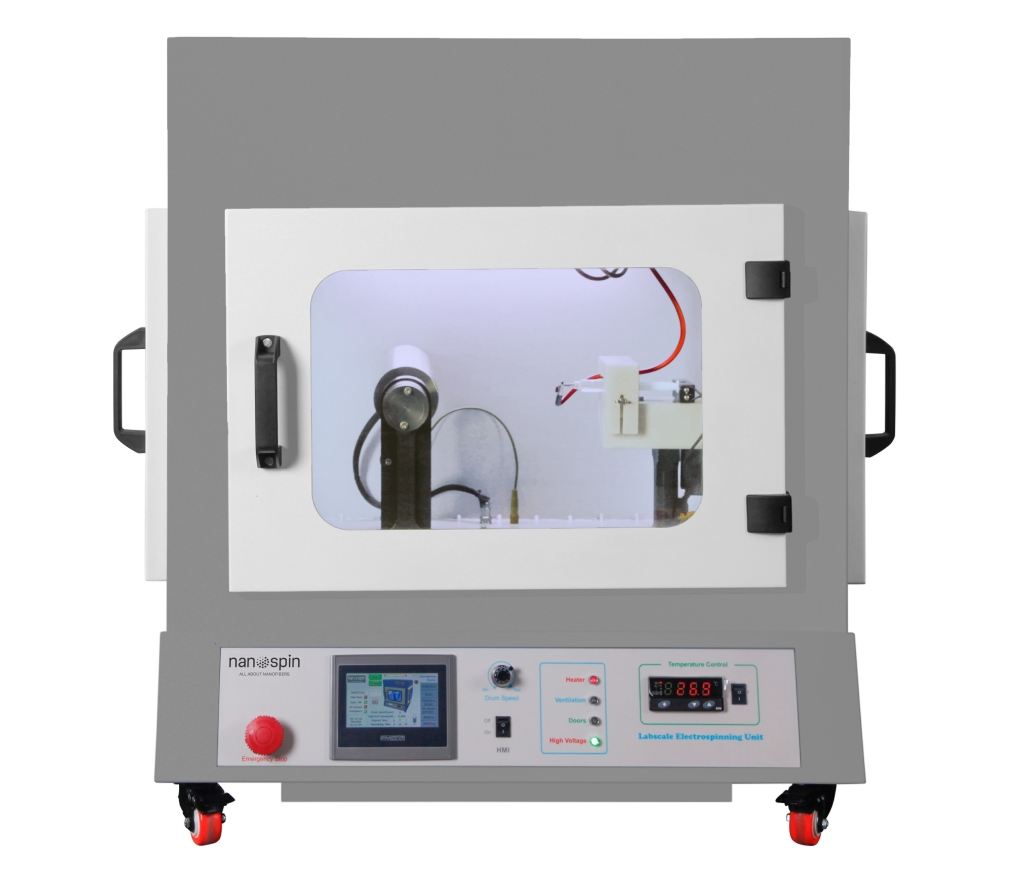

The system integrates a high-voltage power supply, syringe pump, needle, collector, and linear motion system. The polymer solution is loaded into a syringe and ejected through a needle under high voltage, forming a nanofiber jet that is deposited on a rotating or stationary collector.
π― Applications
Lab-scale electrospinning with the NanoSpin 10 allows researchers to study how parameters such as flow rate, voltage, collector speed, and spinning distance influence nanofiber morphology.
Common uses include:
π©Ή Tissue Engineering β Composite scaffolds and biomedical materials.
π Drug Delivery β Multi-material fibers with active pharmaceutical ingredients.
π¬οΈ Filtration Media β High-performance air and liquid filters.
βοΈ Advanced Material Synthesis β Functional nanofibers with tailored properties.
π¬ Biological & Pharmaceutical Research β Coatings, membranes, and experimental materials.
10 Β΅l/h to 500 ml/h
Syringe pump injection rate
1 or 2
Number of syringes
35 kV
Output voltage
5-20 cm
Spinning distance
β Main Features
πΊ 7β Touch-Screen HMI β Precise process control with an intuitive interface.
π‘οΈ Emergency Stop β Immediate shutdown for enhanced safety.
π§ͺ User-Friendly Operation β Easy setup and maintenance.
π Syringe Pump β Supports up to 2 syringes for versatile material processing.
βοΈ Scanning System β Adjustable 0β3000 mm/min, 0β25 cm range.
π Distance Adjuster β Adjustable from 5β20 cm.
β‘ Positive HV Supply β 0β35 kV, Β±0.1 kV accuracy.
β‘ Negative HV Supply β 0β35 kV, Β±0.1 kV accuracy.
π΄ Red Laser Guide β Visualize nanofiber jets during operation.
π‘οΈ Environment Monitoring β Temperature & humidity display.
π¨ Ventilation Fan β Programmable for process control.
π Collector Compatibility β Works with multiple collector types.
Specification
General
Chassis & Control System
- Material: Metallic body with three access doors
- Power input: 100-240 V AC / 50-60 Hz
- Control system: 7β touch-screen HMI (Programmable Logic Controller
Dimensions & Weight
- Machine dimensions (LΓWΓH): 88 cm Γ 76 cm Γ 87 cm
- Package dimensions (LΓWΓH): 90 cm Γ 95 cm Γ 100 cm
- Weight: 100 kg (Package: ~140 kg)
Safety features
- Automatic voltage cut-off in case of door opening, grounding issues, or process disruption
Control
Control Features
- Start and end position of the nozzle(s)
- Injection rate control for syringe pump(s)
- Electrospinning distance settings
- Process timing (start, stop, and duration)
- ON/OFF timer for exhaust fan
- Rotational speed control of collector
- Temperature control
- Alarm notification for solution depletion
- Optional digital camera for real-time process monitoring
Spinneret
Spinneret Configuration
- Horizontal setup (no need for tubing)
- Scanning rate: 0β30 mm/s
- Scanning range: 0β30 cm
Syringe PumpΒ
- Injection rate: 10 Β΅l/h to 500 ml/h
- Usable syringe size: 1β25 mm (inner diameter)
- Optional: Co-axial nozzle with tubing
High voltage power supply
- Model: PS-V35P (Positive) / PS-V35N (Negative)
- Max output voltage: 35 kV
- Power: 30 Watt
- Voltage monitoring: Digital (accuracy: 0.1 kV)
- Body: Durable metal casing
- Configuration:
- One positive power supply connected to the syringe pump
- One negative power supply connected to the collector
Collector
Specifications
- Negative cylinder & plate collector
- Optional collectors: Wire, mandrel, single wire, radial, needle, and disk collectors
- Material: Stainless steel
- Rotational speed: 300β3000 rpm (cylindrical drum)
- Spinning distance: 5β20 cm
- Nanofiber coverage area: 30 cm Γ 29 cm (Cylindrical drum)
Collector Dimensions
- Negative Cylindrical Collector: 10 cm (ΓΈ) Γ 25 cm (L)
- Plate Collector: 30 cm Γ 30 cm
- Single Wire Collector (Optional): Tensioned cable (20+ Β΅m cables)
- Needle Collector (Optional): Replaceable needle
- Disk Collector (Optional): Diameter: 3, 5, & 10 cm
- Wheel Collector (Optional): Diameter: 20 cm, Thickness: 1, 2, & 4 cm
- Mandrel (Optional): Length: 25 cm, Diameter: 2, 4, 6, 8, & 10 mm
All collectors can be attached to a negative high-voltage power supply (-35 kV)
Atmospheric System
Ventilation
- Programmable fan, adjustable via HMI panel
Atmospheric Control System (Optional)
- Heating system: Adjustable up to 45Β°C (Β±1Β°C)
- Cooling system: Temperature reduction down to 19Β°C (Β±1Β°C)
- Humidifier: Up to 80%
- Dehumidifier: Down to 15% (Β±5%)
Environmental Requirements
- Operating temperature: 20β30Β°C
- Operating humidity: 20β70%
