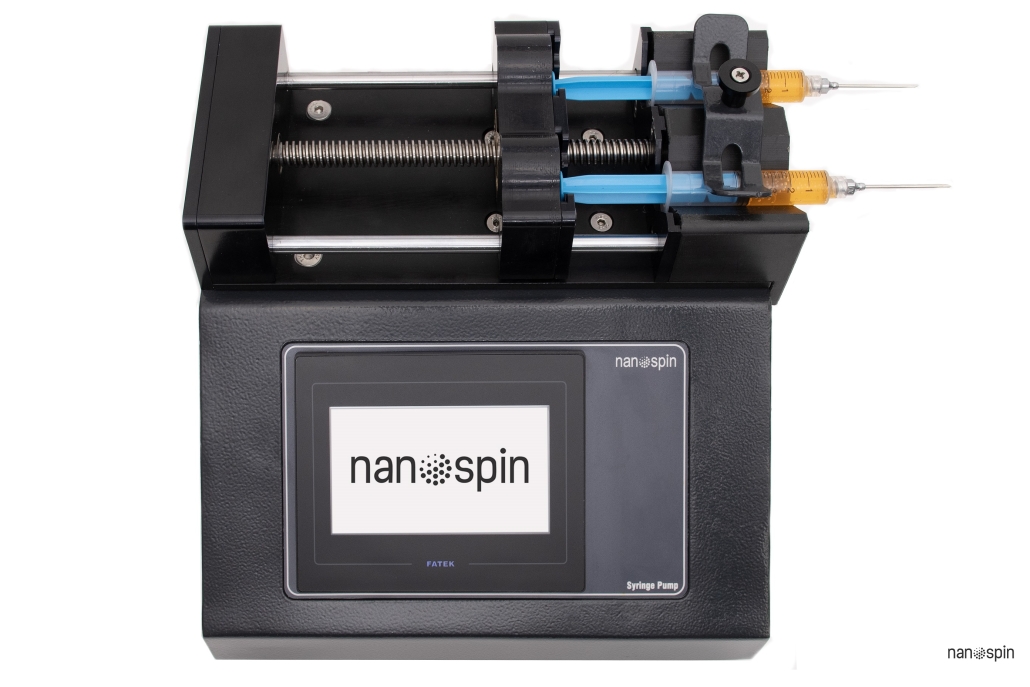

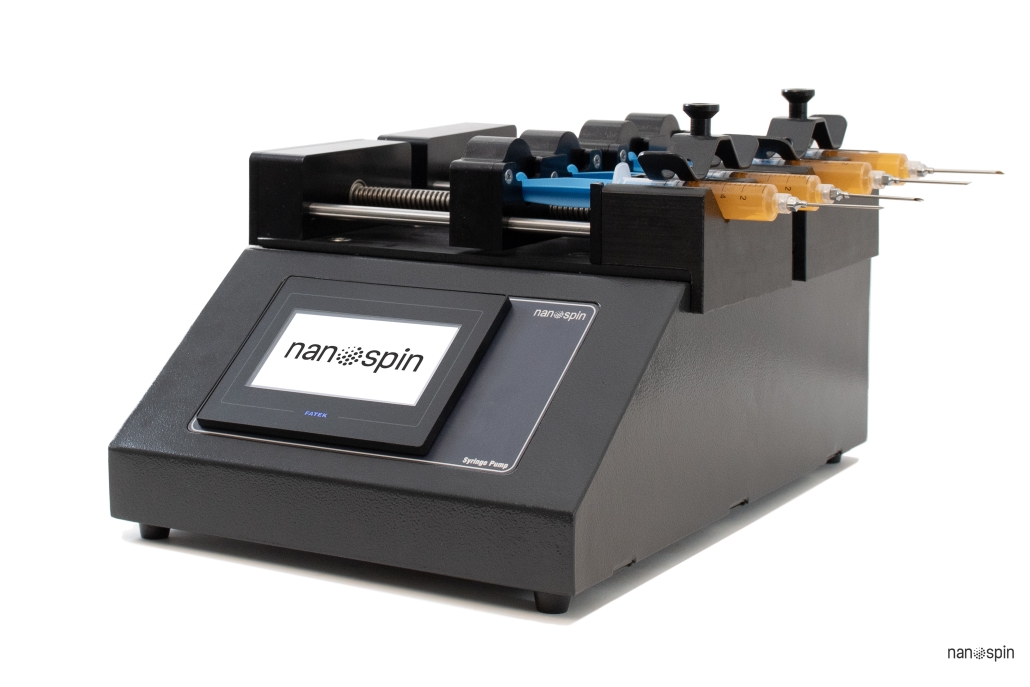

Syringe Pump (SP)

SP12 Series

Brief Description

NanoSpin syringe pumps offer exceptional versatility and value, securely holding 1 to 6 syringes of any brand with volumes ranging from 1 ml to 200 ml. They are ideal for a wide range of applications, including electrospinning processes, calibration infusions into mass spectrometers or reaction chambers, long-term drug delivery in animal studies, and any syringe pump use requiring precise fluid injection. With their high accuracy, robust design, and cost-efficiency, NanoSpin pumps are a reliable solution for both research and industrial settings.

Features and functions

You have two convenient options for selecting the syringe on the pump: you can either choose the manufacturer, material, and size from the menu or directly enter the syringe ID on the pump.

  • The operation of the pump is remarkably user-friendly, offering multiple work modes to suit your specific needs.
  • Thanks to its intelligent memory function, all parameters are automatically saved, eliminating the need for resetting after any interruptions.
  • The pump is equipped with three key functions: protection, communication, and external control. This ensures smooth and secure operations.
  • The input/output control feature allows for easy management and monitoring of various processes.
  • For enhanced accuracy, the pump includes a calibration function, enabling precise volume acquisition during operation.
  • To safeguard the syringes, the pump is designed with an adjustable syringe rest that helps prevent any damage to the syringes during usage.

SP24 Series

1 to 6

Number of Syringe

1 μl/hr

Minimum Flow Rate

5968 ml/hr

Maximum Flow Rate

0.117 μm/μstep

Step Resolution

SP24 Series

NanoSpin SP nomenclature

Model Code: SP XY ABC

X: 1: One mechanical system, 2: Two mechanical systems

Y: Maximum Syringe (1, 2, 4 or 6)

A: L: LCD display ; T: Touch Screen

B: O: not programmable; P: Internal programmable; S: Software and Internal programmable

C: P: Plastic Holder; M: Metal Holder

Example:

SP24 LSP → Syringe Pump, 2 motors, 4 syringes max, LCD display, Software programmable, Plastic holder

SP16 TPM → Syringe Pump, 1 motor, 6 syringes max, Touch screen, Internal programmable, Metal holder

SP11 LSM → Syringe Pump, 1 motor, 1 syringe max, LCD display, Software programmable, Metal holder

Specification

 100-240V AC, 50-60 Hz.

Max. Syringe lines. (1, 2, 4 or 8)

4-line, 20-character LCD display

Or 4.3” touch screen HMI panel

 Stores syringe inner diameter, rate, target volume, programs and settings

 Plastic, metal or glass

1 μl/hr using a 10μl syringe (barrel diameter: 1 mm) & 5968 ml/hr using a 60 ml syringe (barrel diameter: 29 mm)

 10 nm

17 kg (in M series); 25 kg (in H series); measured at the 120 ml/hr injection rate

 1.8° Stepper Motor

Microprocessor with 1/128 micro stepping

25600

0.117 μm/μstep

Minimum: 0.25 µm/min; Maximum: 152 mm/min

USB (HSM Series)

0 – 45 °C

Continuous

SP12: 24 × 26 × 20 cm, SP18: 24 × 34 × 20 cm

SP12: 4 kg, SP18: 5.8 kg

1 year
